纹理基础
图片实际上就是一张纹理,为了表现丰富的计算机世界,纹理是必不可少的.
首先需要解决的是如何将一张图片映射到我们的计算机世界中.我们使用x和y轴的两个0-1的数来表示纹理的坐标,即uv坐标
对于我们的三角形,我们可以为每个顶点指定uv坐标,这样就可以和纹理对应起来了.
纹理技术
Wrapping
当纹理z轴坐标超过1时,我们需要对纹理坐标进行wrap,也就是如何处理uv大于1的情况.

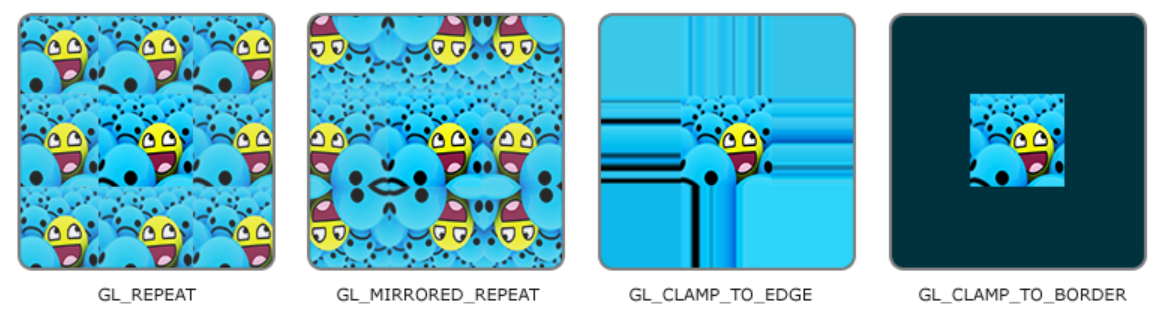

OpenGL提供了四种选择:
- GL_REPEAT: 重复纹理
- GL_MIRRORED_REPEAT: 镜像重复纹理
- GL_CLAMP_TO_EDGE: 贴边纹理
- GL_CLAMP_TO_BORDER: 边缘纹理
效果如下:

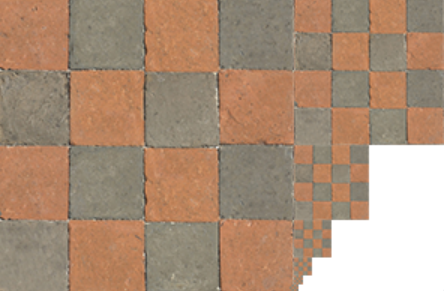

MipMap
想象一下,当镜头拉远,一个很远的物体只占屏幕的4个像素时,如果还让其在一张512x512的纹理上采样,想想都不太高效.
所以可以生成各种分辨率的纹理,然后根据距离摄像机的远近选择合适的纹理.
这种方法带来的开销也非常小.
纹理过滤
纹理是有分辨率的,但uv坐标”没有”.这就导致opengl需要知道如何将纹理像素映射到uv坐标上.
有三种过滤方式:
- point: 点采样,只取一个像素
- linear: 线性采样,取四个相邻像素的平均值
- trilinear: 三线性采样,取八个相邻像素(上下两层)的平均值
分别对应了OpenGL给定的三个枚举值:
- GL_NEAREST: 点采样
- GL_LINEAR: 线性采样
- GL_LINEAR_MIPMAP_LINEAR: 三线性采样
应用纹理
更改我们的vertex:
float vertices[] = {
0.5f, 0.5f, 0.0f, 1.0f, 0.0f, 0.0f, 1.0f, 1.0f,
0.5f, -0.5f, 0.0f, 0.0f, 1.0f, 0.0f, 1.0f, 0.0f,
-0.5f, -0.5f, 0.0f, 0.0f, 0.0f, 1.0f, 0.0f, 0.0f,
-0.5f, 0.5f, 0.0f, 1.0f, 1.0f, 0.0f, 0.0f, 1.0f
};
|
更改顶点属性
glVertexAttribPointer(0,3,GL_FLOAT,GL_FALSE,8*sizeof(float),(void*)0);
glEnableVertexAttribArray(0);
glVertexAttribPointer(1,3,GL_FLOAT,GL_FALSE,8*sizeof(float),(void*(3*sizeof(float)));
glEnableVertexAttribArray(1);
glVertexAttribPointer(2,2,GL_FLOAT,GL_FALSE,8*sizeof(float),(void*(6*sizeof(float)));
glEnableVertexAttribArray(2);
|
在VertexShader中添加纹理坐标的输入和输出
#version 330 core
layout (location = 0) in vec3 aPos;
layout (location = 1) in vec3 aColor;
layout (location = 2) in vec2 aTexCoord;
out vec4 vertexColor;
out vec2 texCoord;
void main()
{
gl_Position = vec4(aPos.x, aPos.y, aPos.z, 1.0);
vertexColor = vec4(aColor.x, aColor.y, aColor.z, 1.0);
texCoord = aTexCoord;
}
|
在 FragmentShader 中添加纹理采样
#version 330 core
out vec4 FragColor;
in vec4 vertexColor;
in vec2 texCoord;
uniform vec4 ourColor;
uniform sampler2D Texture0;
uniform sampler2D Texture1;
void main()
{
vec4 texColor0 = texture(Texture0, texCoord);
vec4 texColor1 = texture(Texture1, texCoord);
FragColor = texColor0 * texColor1 * ourColor;
}
|
问题来了,Texture0和Texture1这两个uniform变量是怎么来的?
和OpenGL其他资源一样,典型创建纹理代码如下:
unsigned int texture;
glGenTextures(1, &texture);
glBindTexture(GL_TEXTURE_2D, texture);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
int width, height, nrChannels;
unsigned char *data = stbi_load("container.jpg", &width, &height, &nrChannels, 0);
if (data)
{
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB, width, height, 0, GL_RGB, GL_UNSIGNED_BYTE, data);
glGenerateMipmap(GL_TEXTURE_2D);
}
else
{
std::cout << "Failed to load texture" << std::endl;
}
stbi_image_free(data);
|
在使用纹理时,我们需要绑定纹理对象到对应的纹理单元(texture unit)上,然后在FragmentShader中使用texture函数来采样纹理.
当只有一个纹理时,opengl会自动将其绑定到GL_TEXTURE0上,当有多个纹理时,我们需要手动绑定到对应的纹理单元上.
glActiveTexture(GL_TEXTURE0);
glBindTexture(GL_TEXTURE_2D, texture1);
glActiveTexture(GL_TEXTURE1);
glBindTexture(GL_TEXTURE_2D, texture2);
glBindVertexArray(VAO);
glDrawElements(GL_TRIANGLES, 6, GL_UNSIGNED_INT, 0);
|
纹理类
显而易见,我们可以为纹理封装一个类减少代码量.
为了读取图片内容,我们使用(stb_image.h库)[https://github.com/nothings/stb/blob/master/stb_image.h]
Texture.hpp
#pragma once
#include <string>
#include <iostream>
#include "glad/glad.h"
#include "stb_image.h"
class Texture
{
public:
unsigned int id;
int width, height, nrChannels;
GLenum textureSlotIndex;
std::string texName;
public:
Texture(std::string filename,GLenum textureSlotIndex,std::string texName = "default");
~Texture(){};
public:
void Activate(unsigned int shaderProgramID,std::string uniformName);
};
|
Texture.cpp
#include "Texture/Texture.hpp"
Texture::Texture(std::string filename,GLenum textureSlotIndex,std::string texName)
{
this->texName = texName;
this->textureSlotIndex = textureSlotIndex;
stbi_set_flip_vertically_on_load(true);
unsigned char* data = stbi_load(filename.c_str(), &width, &height, &nrChannels, 0);
if (!data)
{
std::cout << "Failed to load texture" << std::endl;
return;
}
glGenTextures(1, &id);
glActiveTexture(textureSlotIndex);
glBindTexture(GL_TEXTURE_2D, id);
if(nrChannels == 3)
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB, width, height, 0, GL_RGB, GL_UNSIGNED_BYTE, data);
else if(nrChannels == 4)
glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, width, height, 0, GL_RGBA, GL_UNSIGNED_BYTE, data);
else
std::cout << "Texture format not supported" << std::endl;
glGenerateMipmap(GL_TEXTURE_2D);
stbi_image_free(data);
}
void Texture::Activate(unsigned int shaderProgramID,std::string uniformName)
{
glActiveTexture(textureSlotIndex);
glBindTexture(GL_TEXTURE_2D, id);
glUniform1i(glGetUniformLocation(shaderProgramID, uniformName.c_str()), textureSlotIndex-GL_TEXTURE0);
}
|
